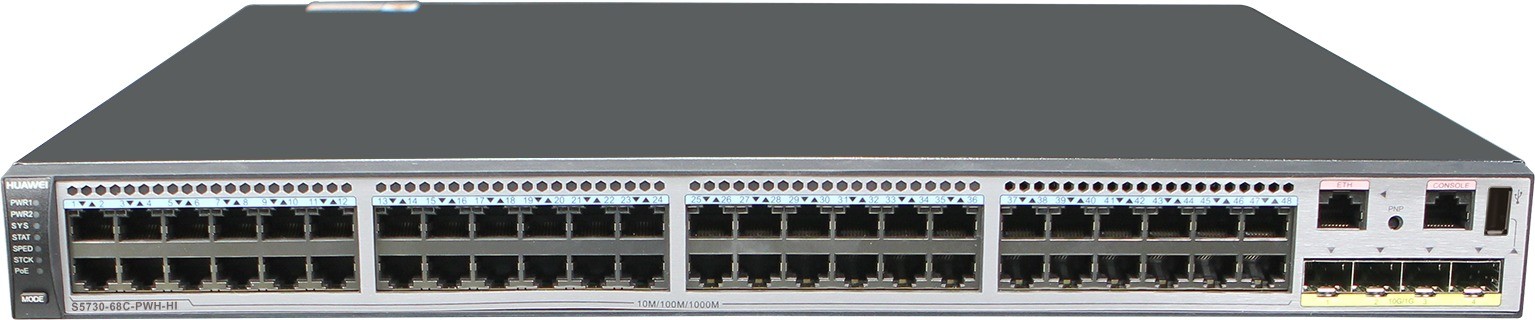

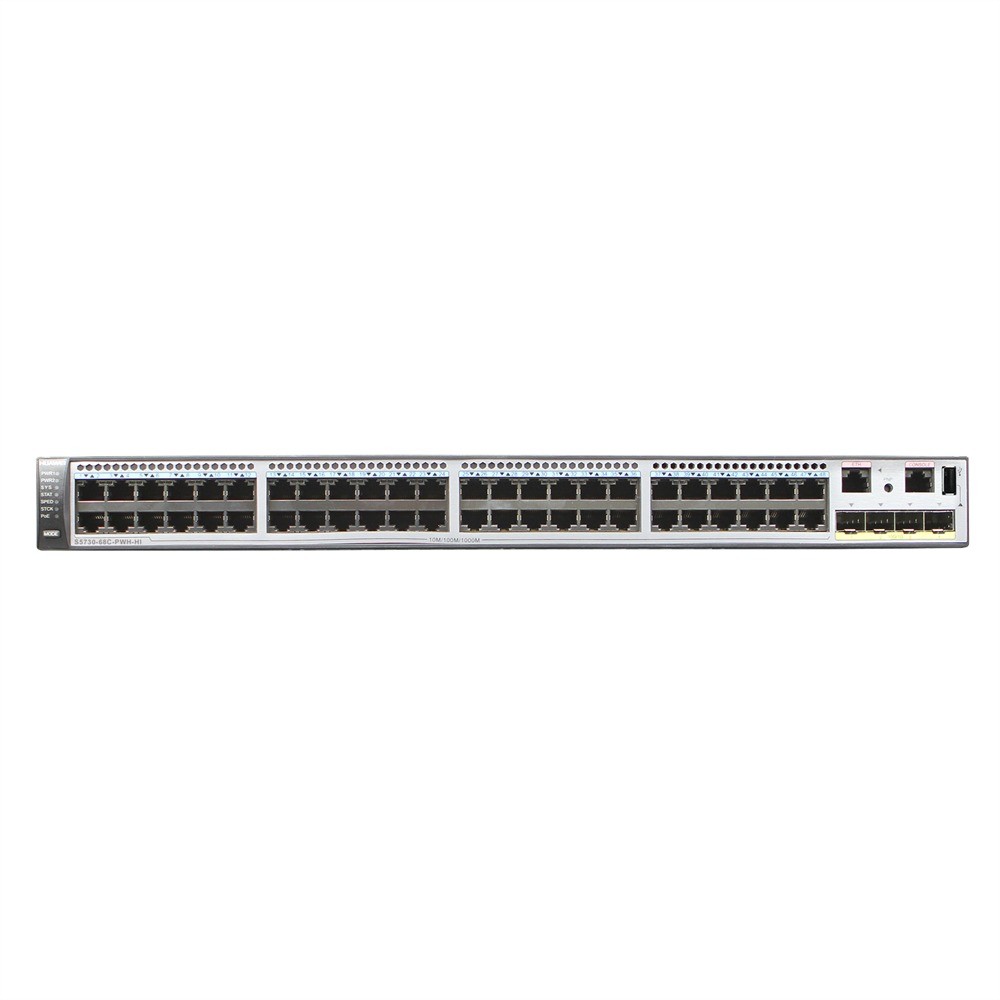

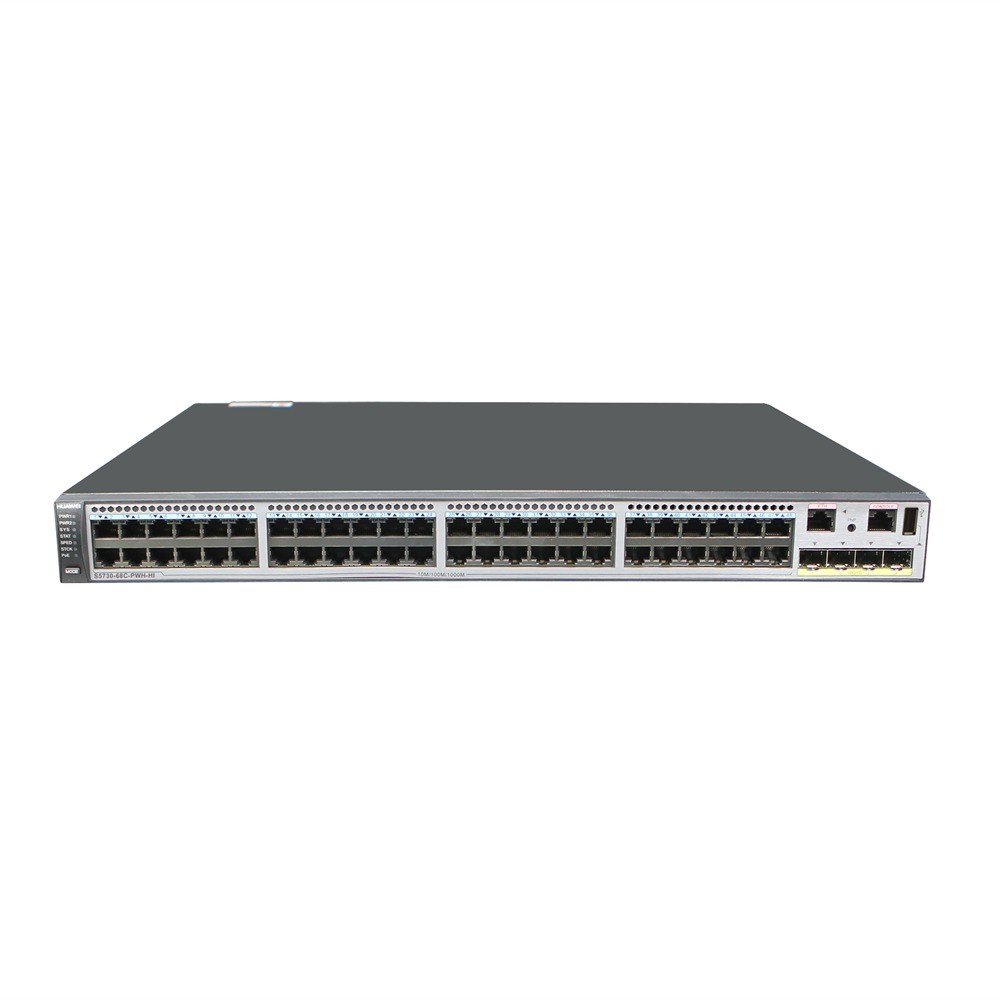

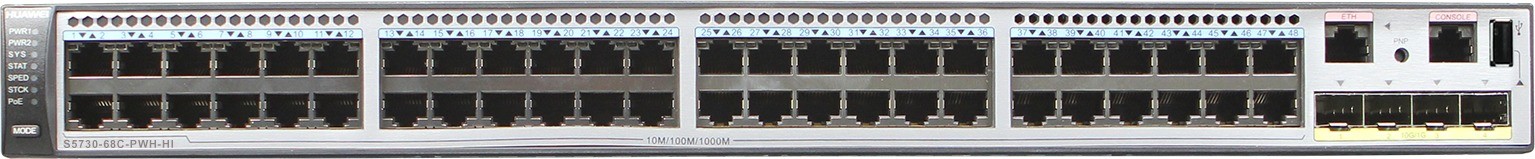

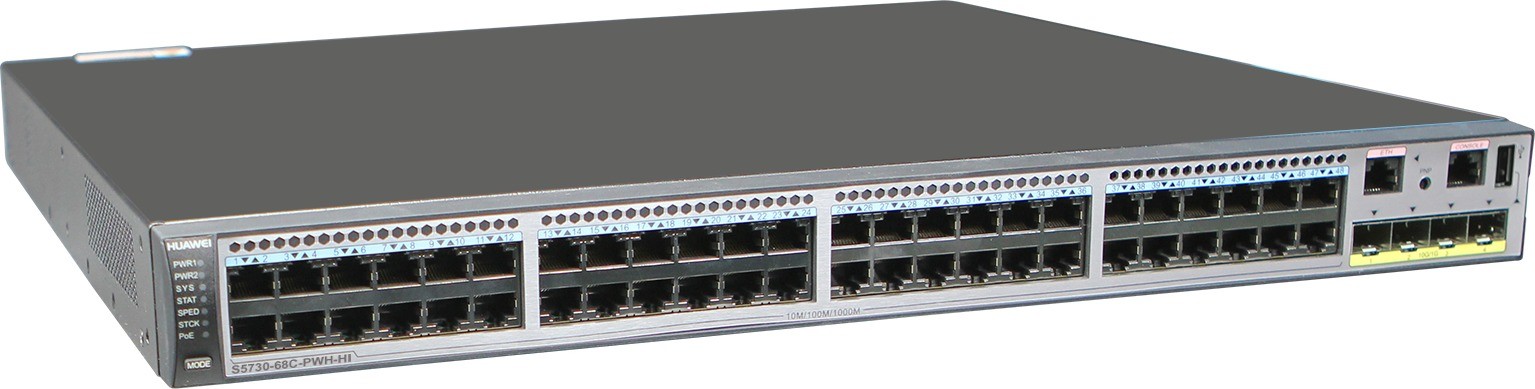

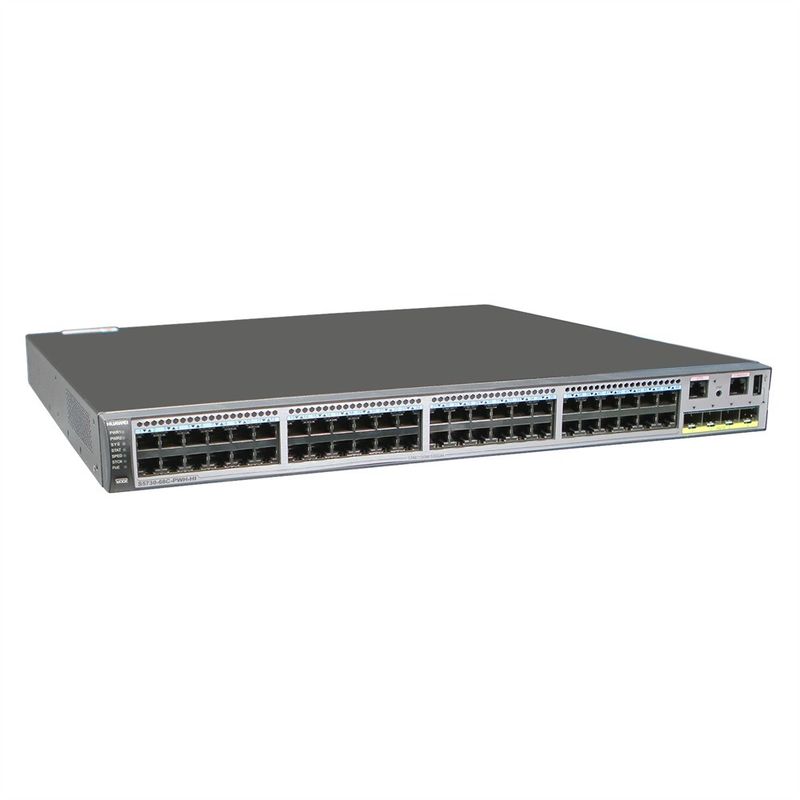

Rack Mount S5700 Series 48 Poe 10/100/1000base-T Enterprise Switch Private Mold NO

Item

H3C S5730-68c-Pwh-Hi Switch

Memory (RAM)

2 GB

Flash

1 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

48.31 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

* Using 500 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode
* Using 650 W DC or 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

* Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72
in.)
* Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0
mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to
541.1 mm (21.3 in.).

Weight (with packaging)

8.7 kg (19.18 lb)

Stack ports

10GE SFP+ ports on the front panel, or 10GE ports or 40GE QSFP+ ports on the rear card

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz
-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

74 W (without card)
