Detail Information

Private Mold:	NO	Products Status:	Stock, Used, Stock
Ports:	≥ 48	Transmission Rate:	10/100/1000Mbps
Function:	LACP, SNMP	Communication Mode:	Full-Duplex & Half-Duplex
Switch Capacity:	56 Gb/s	Product Name:	H3C S5720-36C-EI-DC Switch
Type:	Rack

Product Description

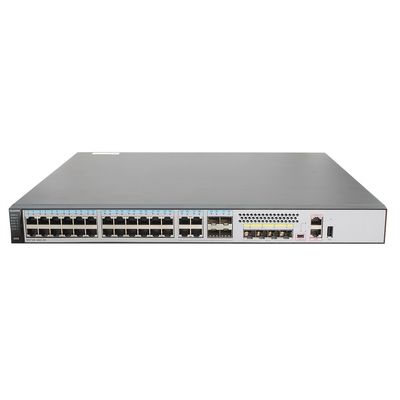

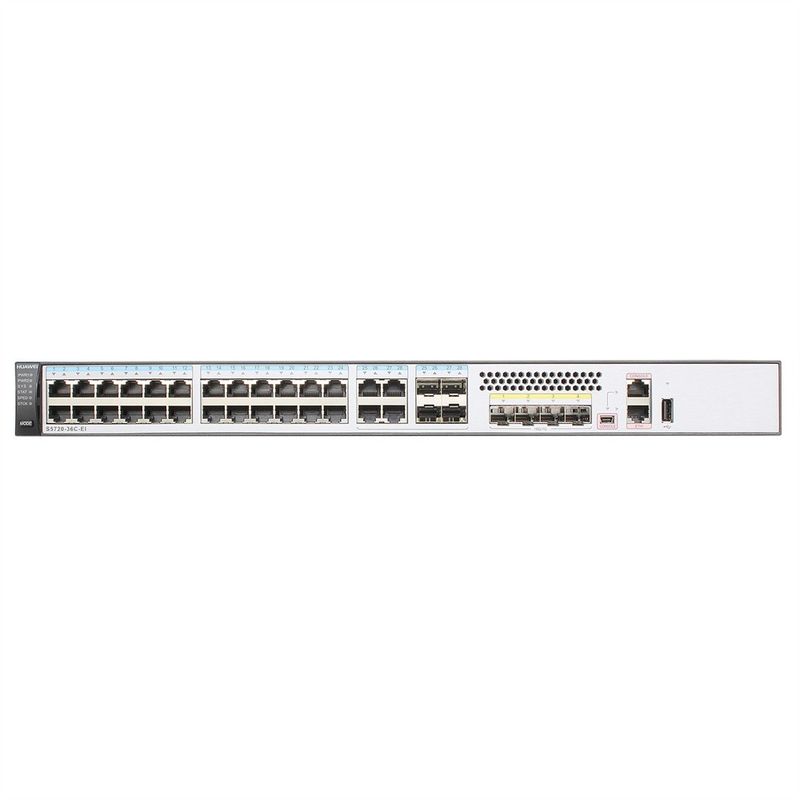

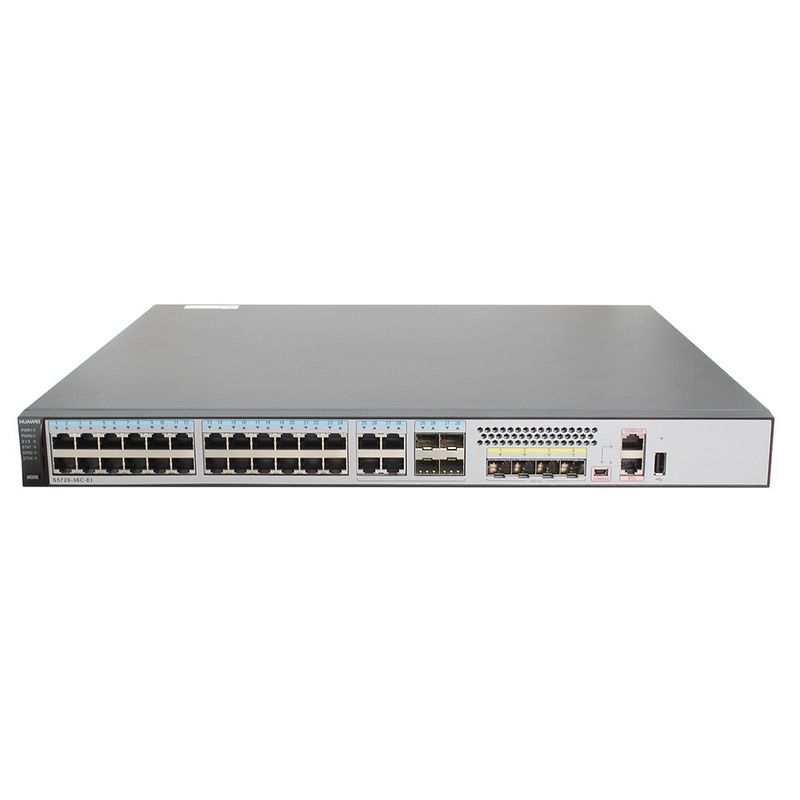

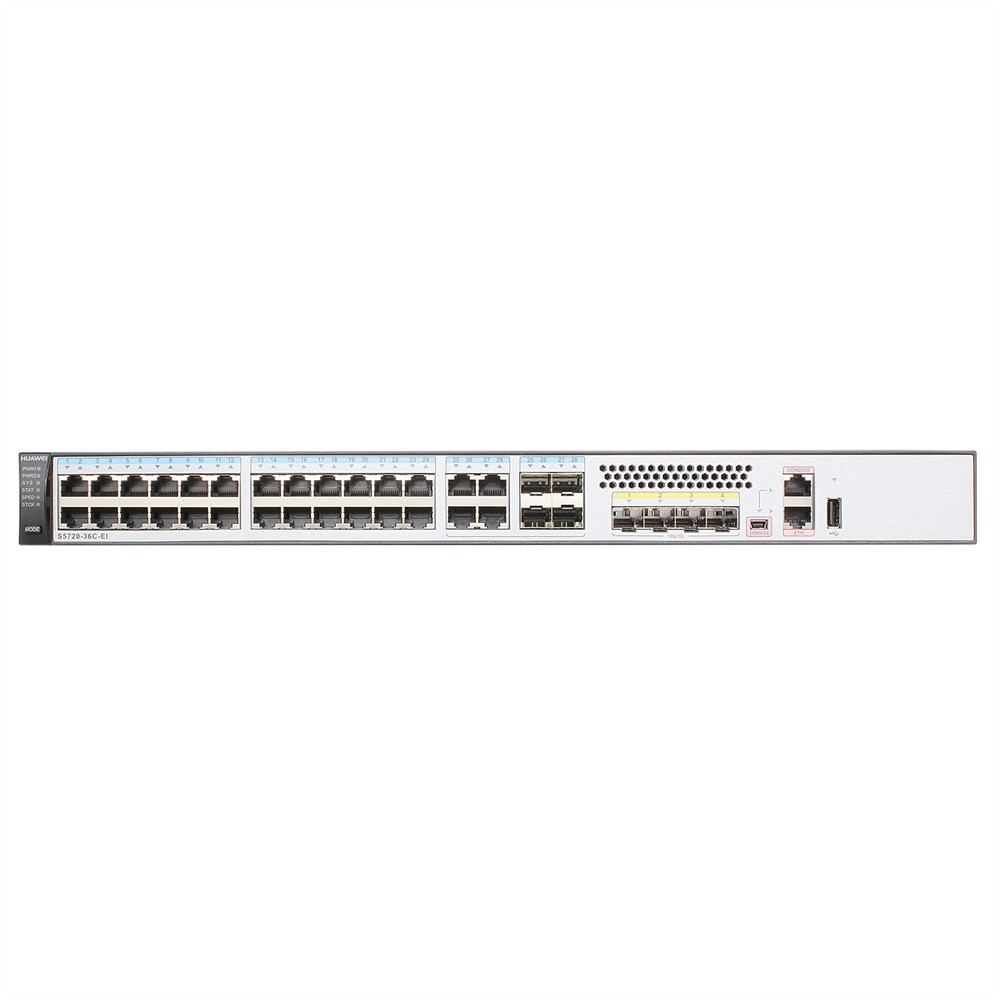

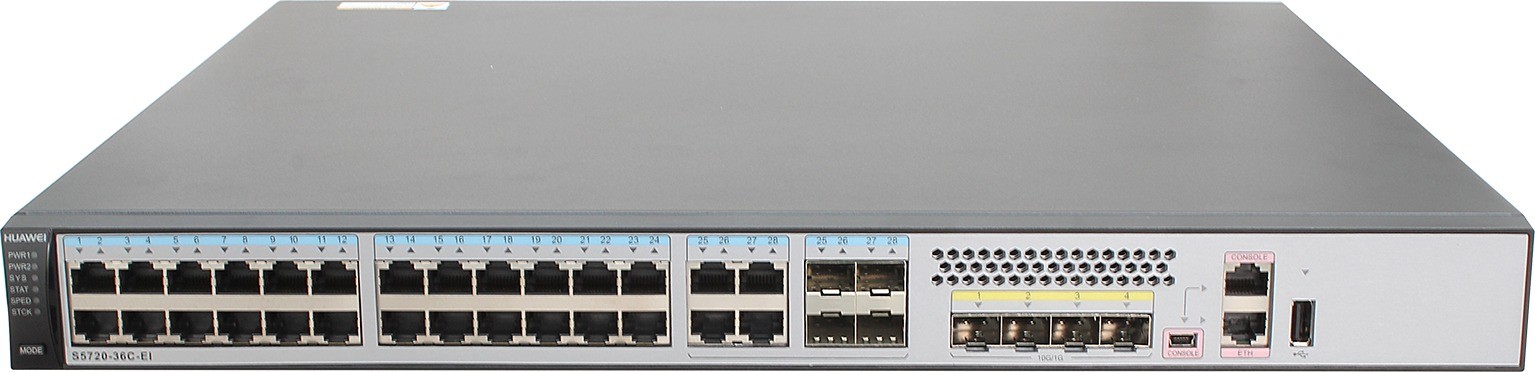

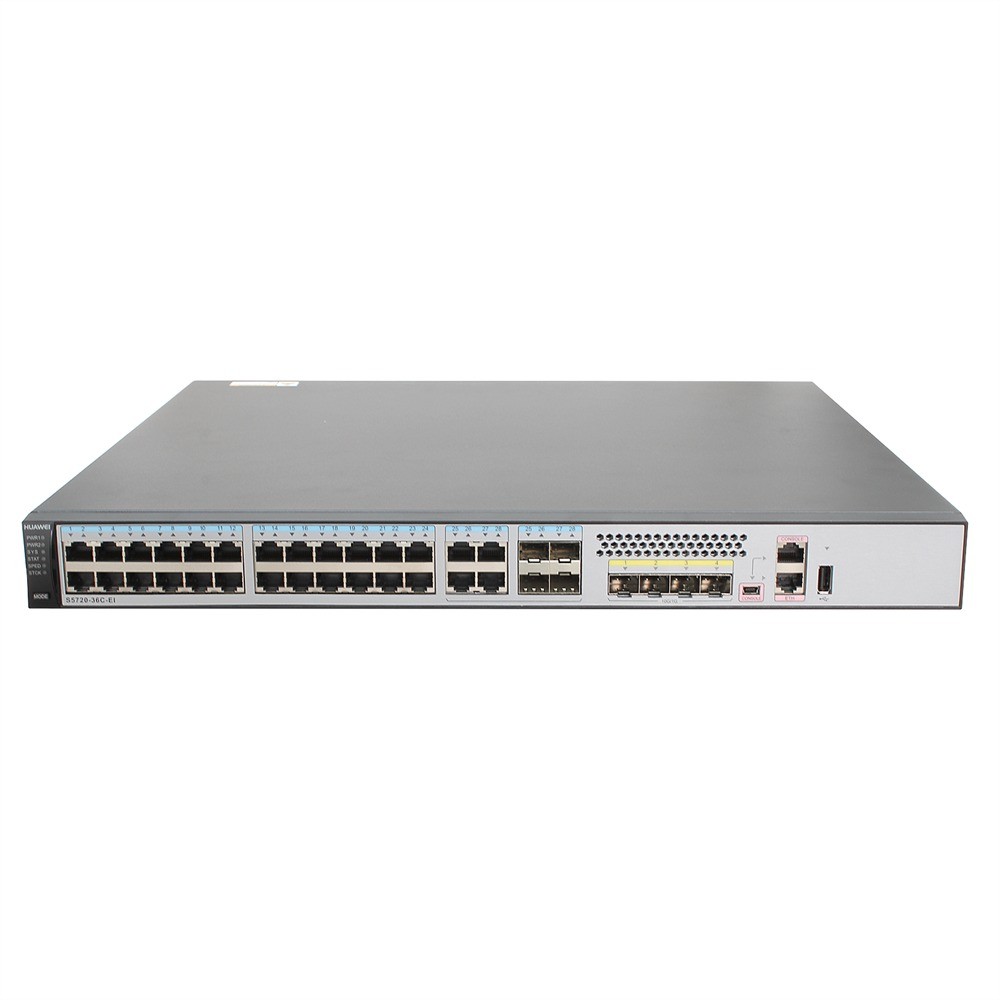

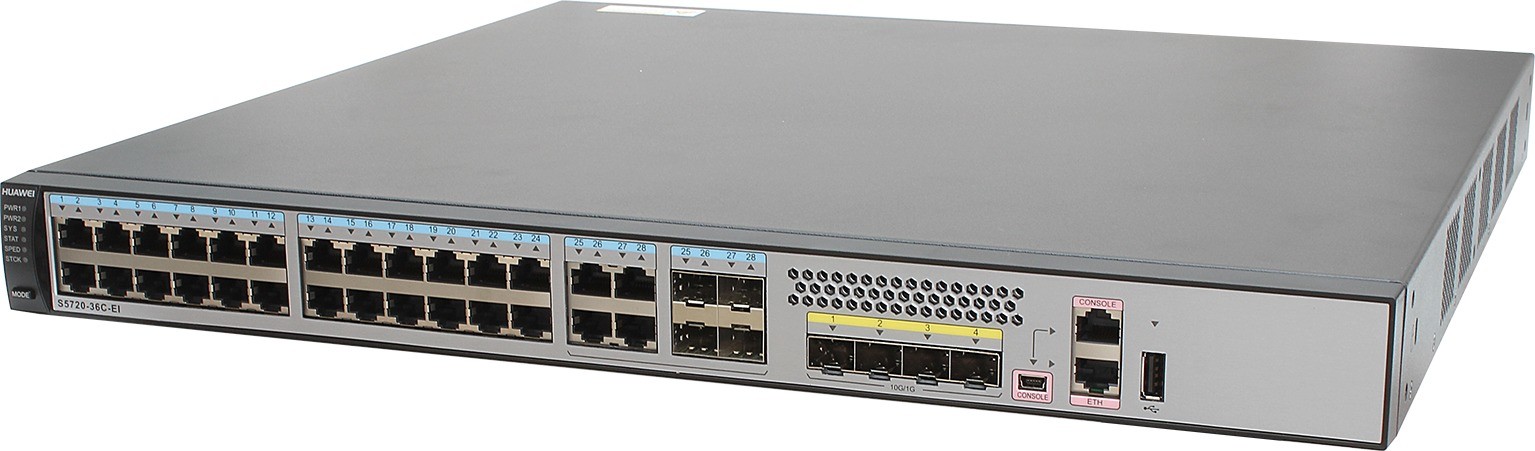

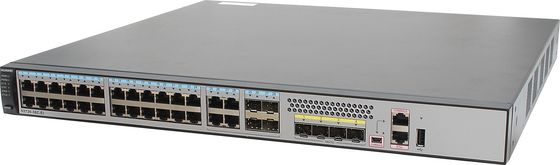

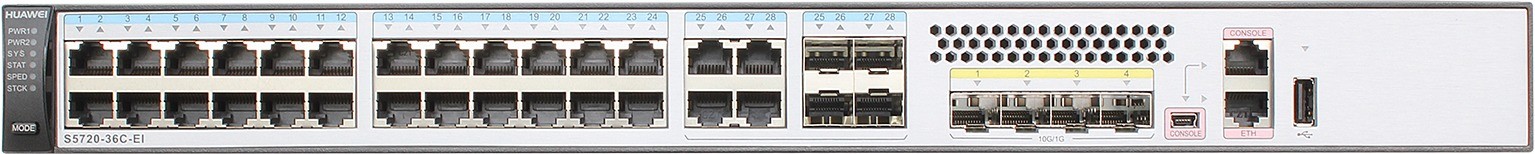

S5720-36C-EI-DC Overview

Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.

Quick Specs.

Product Code	S5720-36C-EI-DC
Extended Slot	One extended slot supporting a service subcard or stack card
Switching Capacity	598 Gbit/s
Forwarding Performance	132 Mpps
Fixed Interfaces	28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports
Power Supply	Double hot-swappable DC power supplies, one AC/DC power module is configured by default
Memory (RAM)	2 GB
Flash	340 MB
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)
Weight	Empty: ≤ 8 kg (17.64 lb) Fully loaded: ≤ 12 kg (26.46 lb)

Compare to Similar Items

Product Code	S5720-36C-EI-DC	S5720-32X-EI-AC
Switching Capacity	598 Gbit/s	598 Gbit/s
Forwarding Performance	132 Mpps	102 Mpps
Fixed Interfaces	28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports	24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 x 10 Gig SFP+
Extended Slot	One extended slot that supports an uplink interface card or private stack card	NA
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm	442 mm x 220 mm x 43.6 mm
Front Power Input	No	Yes

S5720-36C-EI-DC Specification

S5720-36C-EI-DC Specification
Switching Capacity	598 Gbit/s
Forwarding Performance	132 Mpps
Fixed Ports	28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+
Extended Slot	One extended slot supporting a service subcard or stack card
DRAM and Flash Memory	SDRAM: 2 GB Flash: 340 MB
MAC Address Table	64k
Jumbo Frame	12K
VLAN	4k
IP Routing	Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
Security	Hierarchical user management and password protection AAA authentication DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI Port isolation, port security, and sticky MAC NAC and user management based on user groups Limit on the number of learned MAC addresses CPU defense Blacklist and whitelist MACSec ready
Super Virtual Fabric (SVF)	Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software and patching on the client One-click and automatic delivery of service configurations Independent running clients
Interoperability	VBST (Compatible with PVST/PVST+/RPVST) LNP (Similar to DTP) VCMP (Similar to VTP)
Front Power Input	NA
Energy saving	802.3az Energy Efficient Ethernet (EEE) supported
Typical Power Consumption	39.5W
Input Voltage	Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V
Management and Maintenance	iStack Virtual cable test SNMPv1/v2c/v3 RMON/RMON2 Web-based network management system System logs and multi-level alarms sFlow LLDP/LLDP-MED Secure Copy Protocol (SCP), TFTP, FTP Store dual software images and configuration files 802.3az Energy Efficient Ethernet (EEE)
Surge Protection	Surge protection capability of service ports: 6 kV
Interoperability	VLAN-based Spanning Tree (working with PVST/PVST+/RPVST) Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP) VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)
Operating Environment	Operating temperature: Zero to 1,800m altitude: 0°C to 45°C 1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every altitude increase of 220m. Relative humidity: 5% to 95% (non-condensing)
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm

Tag:

Place of Origin:	Fujian, China
Brand Name:	H3C
Model Number:	H3C S5720-36C-EI-DC Switch

Minimum Order Quantity:	1 unit
Price:	$1,100.00/pieces 1-9 pieces
