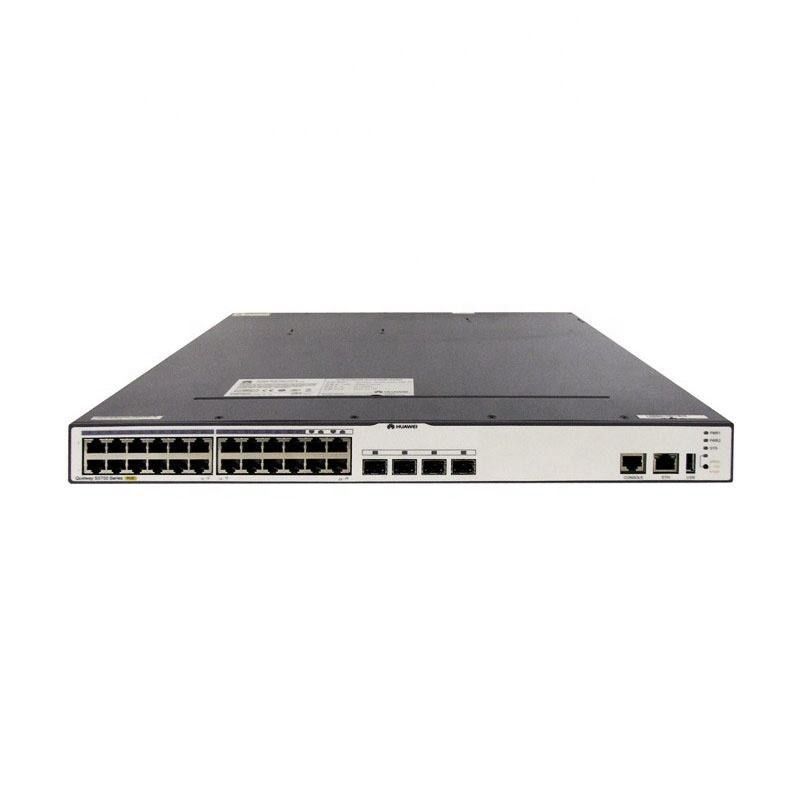

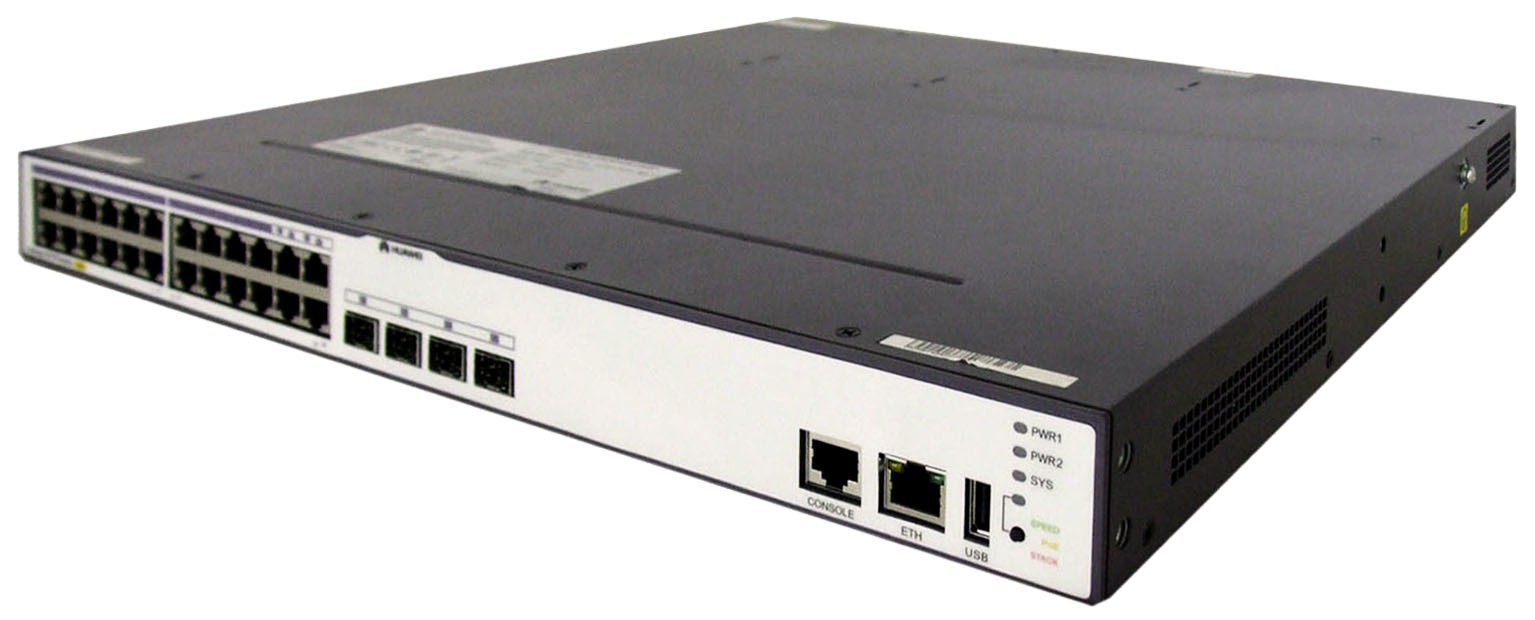

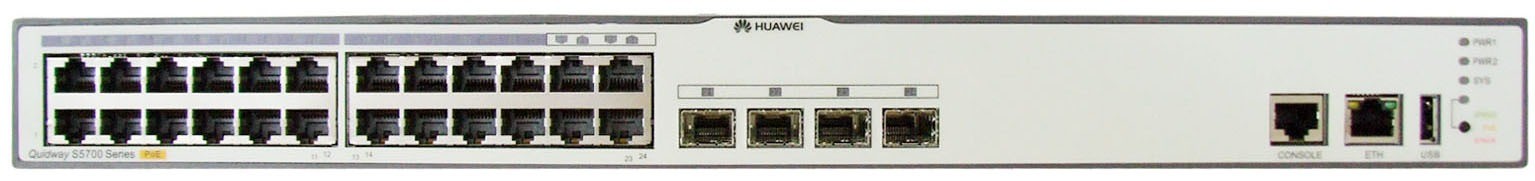

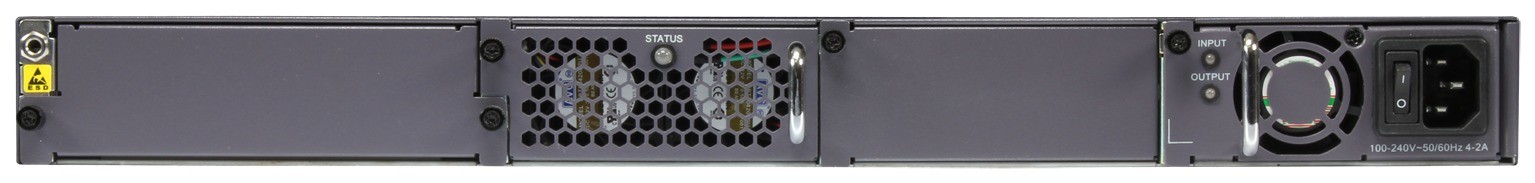

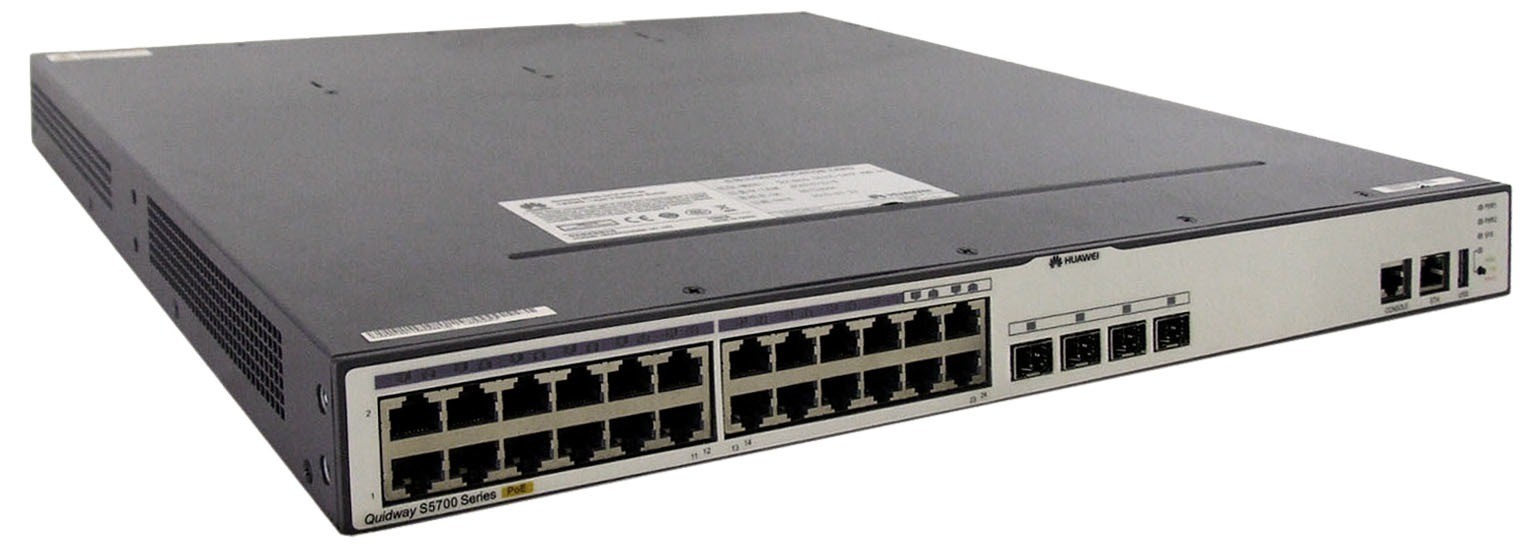

24 Ethernet 10/100/1000 PoE Ports Managed Switch S5700-24TP-PWR-SI with LACP Function

Memory (RAM)

256MB

Flash

32MB

Mean time between failures (MTBF) (years)

84.3

Mean time to repair (MTTR) (hours)

2

Availability

Greater than 0.99999

Business port lightning protection specifications

Common mode ±1kV

Power port lightning protection specifications

Differential mode ±2kV, common mode ±4kV

Overall dimensions (width x depth x height)

442.0mm×420.0mm×43.6mm

weight

• Empty configuration: ≤5kg
• Full configuration: ≤8.5kg

Stacking port

Two stacking ports of the stacking card

RPS

Not supported

PoE

support

Rated voltage range

AC input: 100V AC ~ 240V AC; 50/60Hz

Maximum voltage range

AC input: 90V AC ~ 264V AC; 47Hz ~ 63Hz

Maximum power consumption (100% traffic, full PoE load, full fan speed)

455W (device power consumption: 85W, PoE: 370W)

Operating temperature range

0°C～50°C

Storage temperature range

-40°C～+70°C

Noise at normal temperature (27°C, sound power)

Less than 51dB(A)

Relative humidity range

5%RH～95%RH, non-condensing

Working altitude

0m～5000m

Product Certification

• Support EMC certification
• Support safety certification
• Support production certification

Part Number

02352369
